Protect Product Purity
MPI’s Metal Detector for Pneumatic Lines is a high-speed, inline detection system engineered to identify and remove ferrous, non-ferrous, and stainless-steel contaminants from pneumatically conveyed materials. Designed for integration into pressure or vacuum conveying systems, this compact, high-sensitivity unit inspects bulk powders, granulates, pellets, or small particulate materials in vertical or horizontal lines—without disrupting material flow or system pressure.
Equipped with a ring-shaped detection coil, a fast response reject mechanism, and durable, hygienic construction, the system provides continuous inspection and automatic contaminant removal. Whether installed in a food, plastics, chemical, or pharmaceutical facility, MPI’s Pneumatic Line Metal Detector safeguards downstream equipment, preserves product quality, and ensures compliance with global quality and safety standards like HACCP, GFSI, FSMA, and GMP.
Benefits of the Pneumatic Line Metal Detector From Magnetic Products, Inc
Inline Detection for Pneumatic Conveying Systems
Designed for both pressure and vacuum lines, the detector continuously inspects fast-moving, air-blown product streams without affecting flow or pressure.
High Sensitivity in High-Velocity Conditions
Detects even the smallest ferrous, non-ferrous, and stainless-steel particles in dense, dry bulk materials—ensuring product purity at high throughput rates.
Fast-Acting Reject Mechanism
Integrated reject diverter or air-blast valve immediately removes contaminated product from the flow path with minimal material loss and no production stop.
Compact & Hygienic Design
Crevice-free stainless-steel housing with sanitary fittings for easy installation in food, pharmaceutical, or cleanroom applications; available in IP65+ ratings.
User-Friendly Interface
Intuitive touchscreen with product memory, real-time status display, and auto-learn function reduces setup time and simplifies operation.
Easy Integration & Retrofitting
Designed for flexible installation in both vertical and horizontal pneumatic lines, with flange or clamp-style adapters and customizable tube sizes.
Supports HACCP & GMP Programs
Ideal as a Critical Control Point (CCP), the system includes validation ports and supports audit-ready traceability for food, pharma, and chemical industries.
SharkNet® Ready for Central Monitoring
Compatible with MPI’s SharkNet® software for remote access, performance tracking, electronic validation logging, and compliance with 21 CFR Part 11.
Pneumatic Line Metal Detector Product Details

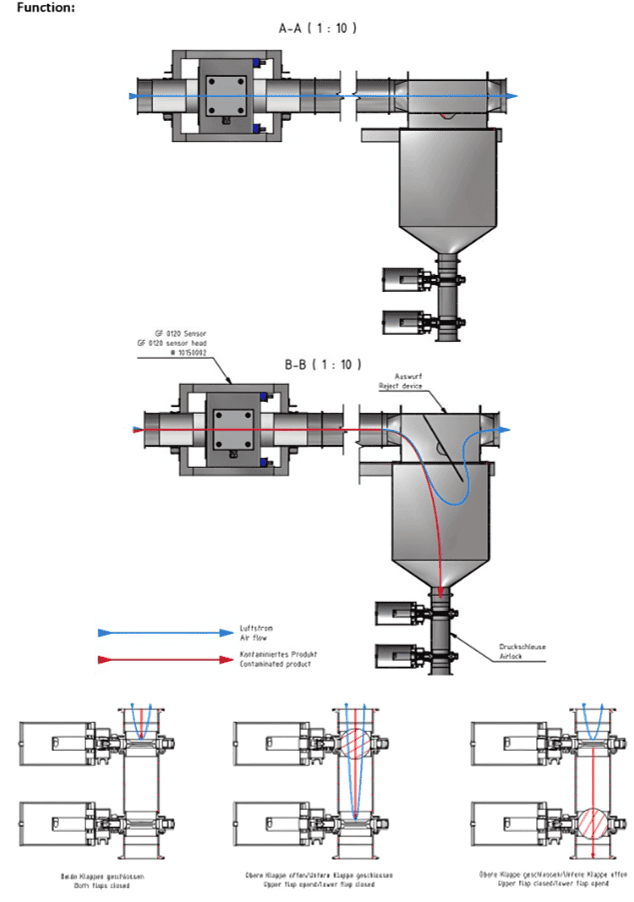

How It Works
MPI’s Metal Detector for Pneumatic Lines is installed directly into a pressure or vacuum pipeline system used to convey dry bulk products via air pressure. The detector consists of a ring-shaped electromagnetic coil that surrounds the product flow tube. As material travels through the detection zone at high velocity, it passes through the electromagnetic field generated by the coil.
If a metallic contaminant—such as ferrous wire, non-ferrous shavings, or stainless-steel fragments—enters the detection field, it causes a measurable disturbance. The system’s digital signal processor evaluates the signal and, if it exceeds the preset sensitivity threshold, triggers the reject system.
The integrated reject mechanism—usually a pneumatically actuated diverter valve or air-blast nozzle—activates instantly to remove the contaminated material into a separate reject chamber. Clean product continues flowing through the pipeline without interruption. The system can log each event, validate reject performance, and provide visual/audible alerts as needed.

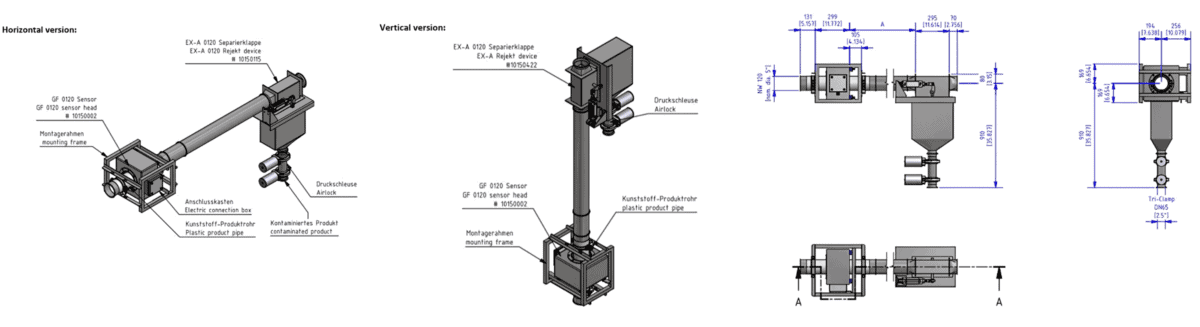

Pneumatic Line Metal Detector Specification Table
US Customary Units
Pneumatic Line Metal Detector Installations & Variations
We operate under the philosophy of The Game of Work.

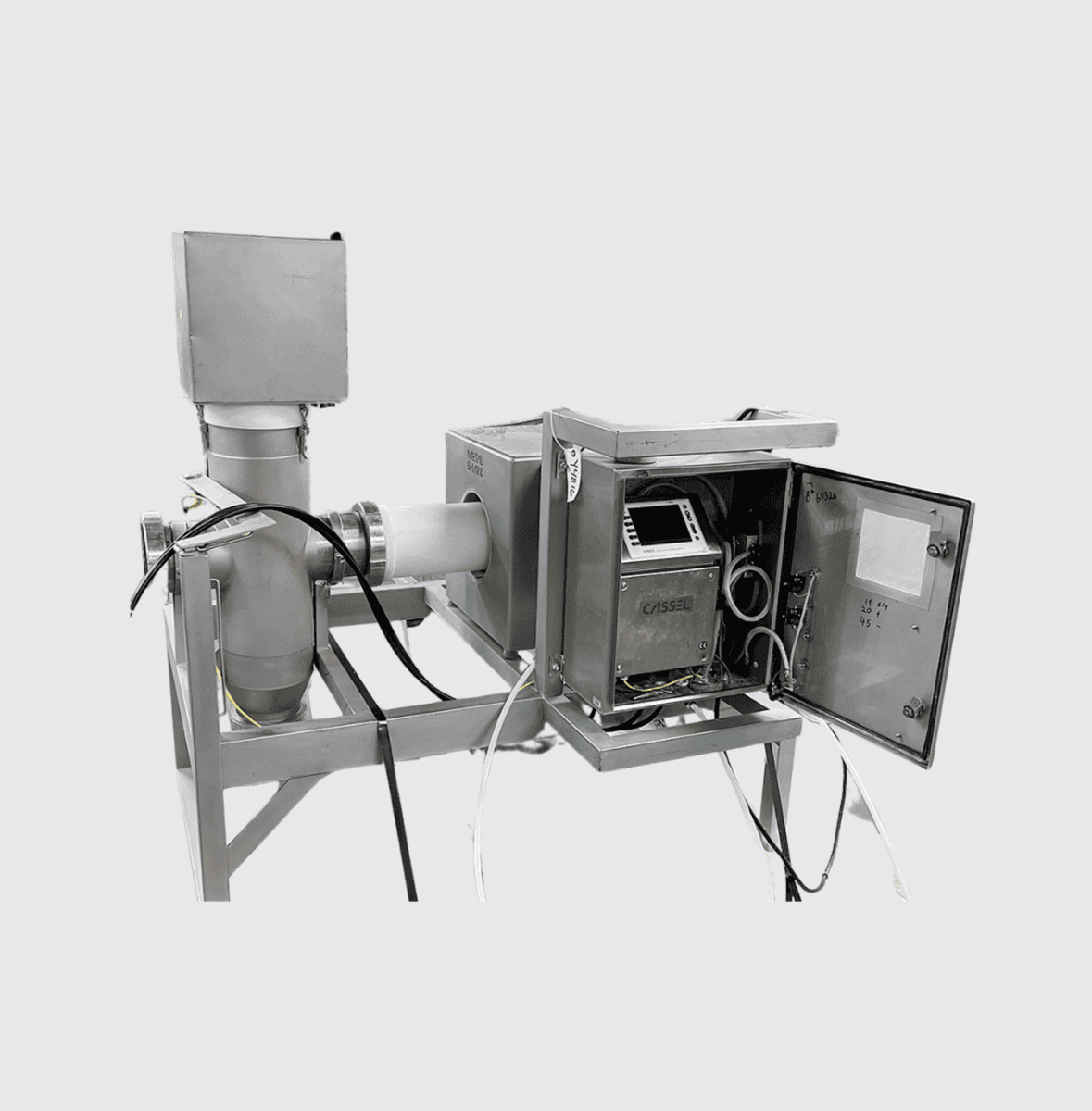

Metal Detector for Pnuematic Line for Processing Dense, Moisture-Rich Products

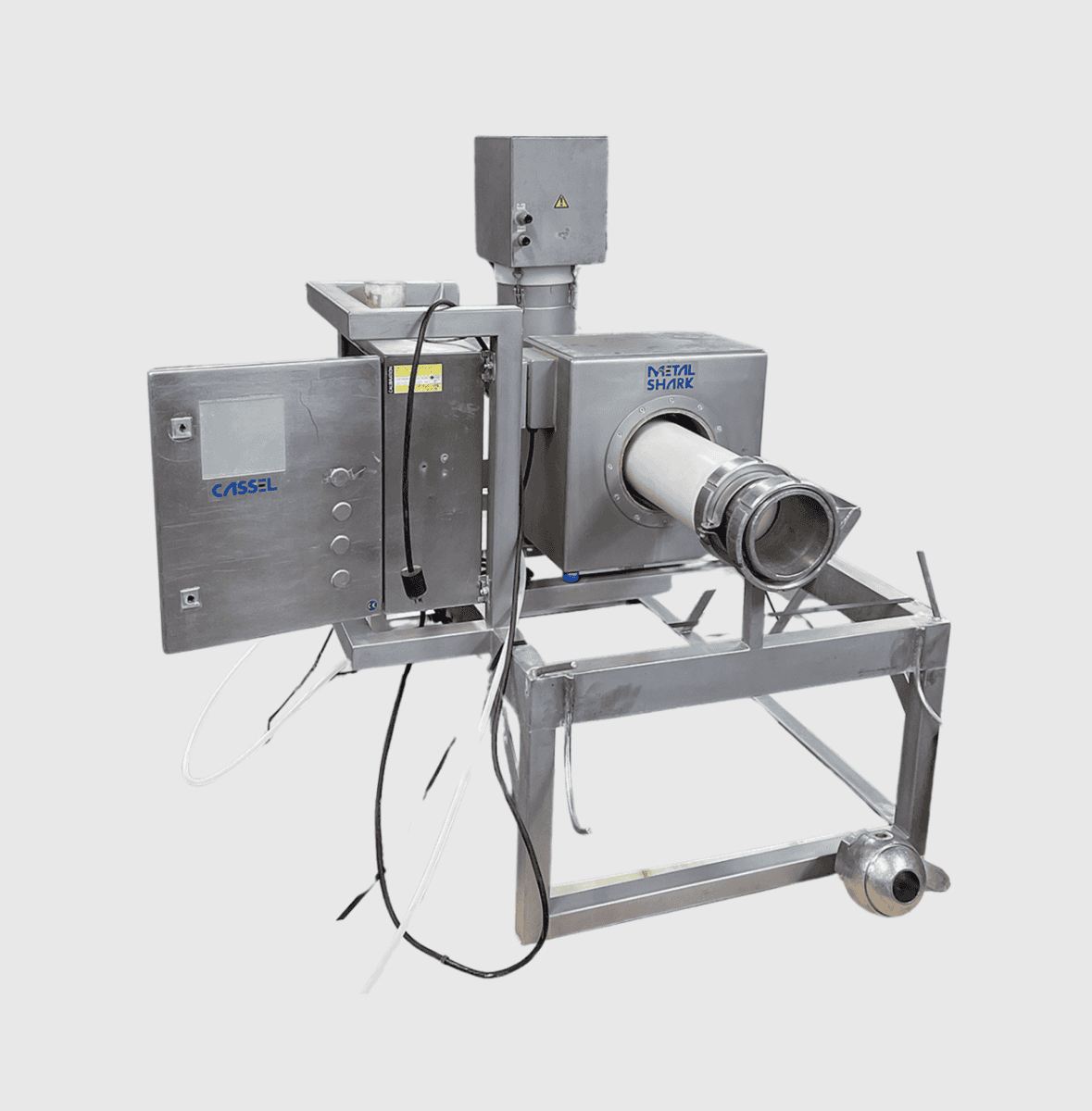

Metal Detector for Pnuematic Line for Processing Fast-Moving, Air-Blown Product Streams

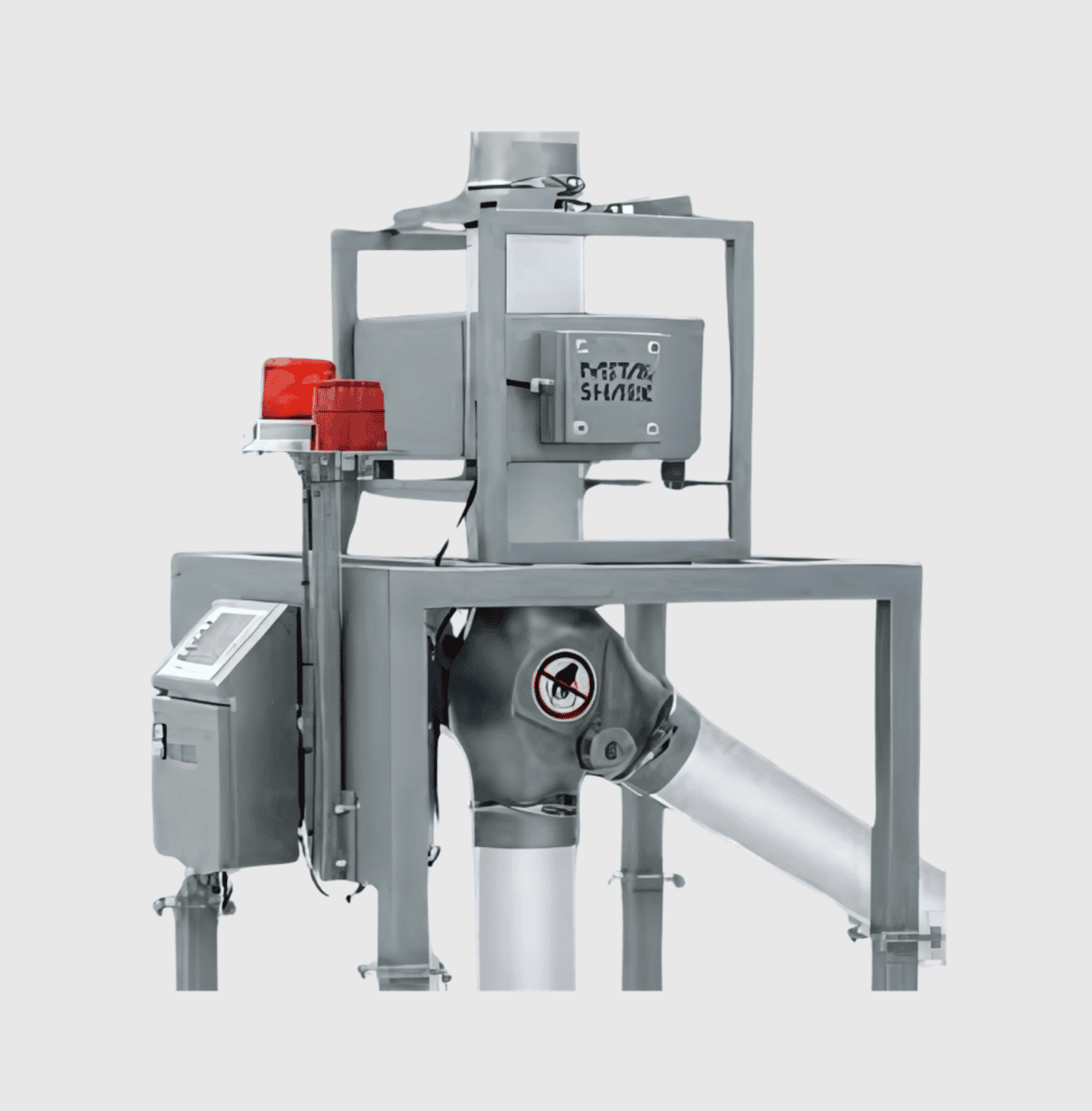

Metal Detector for Pnuematic Line for Processing Chemical Slurry
