Reduce Contamination Risk
MPI’s Tunnel (TU) Metal Detector is a high-sensitivity, industrial-grade system that detects metal contaminants in bulk materials conveyed on belts. Ideal for use in recycling, wood, plastics, textile, and food processing operations, the TU model provides reliable inline inspection of both the top and bottom of conveyed products, ensuring maximum coverage for tramp metal detection. Its robust rectangular design accommodates a wide range of product sizes and conveyor widths, and its rugged construction makes it suitable for challenging environments with dust, vibration, and variable product flow. With fast response times, multi-channel signal processing, and seamless integration with belt systems, the Tunnel Metal Detector helps protect downstream equipment, maintain product quality, and support regulatory compliance.
Benefits of the Tunnel (TU) Metal Detector From Magnetic Products, Inc
Full-Belt Detection Coverage
Detects ferrous, non-ferrous, and stainless-steel contaminants across the entire width and height of the conveyor load—ideal for inspecting uneven or bulk materials.
Rugged, Industrial-Grade Construction
The TU detector is engineered with heavy-duty steel or stainless-steel housing and withstands harsh production environments including dust, moisture, and mechanical vibration.
Customizable Aperture Sizes
Available in various standard and custom sizes to accommodate varying belt widths, product heights, and installation requirements.
Advanced Signal Processing & Filtering
Digital electronics with multi-frequency and noise-filtering technology minimize false triggers caused by vibrations, product effects, or environmental interference.
High-Speed Detection & Response
Rapid reaction time enables detection of small contaminants even at high conveyor speeds, reducing the risk of downstream equipment damage.
Flexible Integration with Conveyors
It easily installs above, below, or around existing belt conveyor systems and includes mounting kits or frame support options as needed.
User-Friendly Control System
A touchscreen interface with product memory, error logging, and reject signal output simplifies setup and operation for plant personnel.
Compliance Support for Safety & Quality
Functions as a Critical Control Point (CCP) in compliance with HACCP, ISO, or industry-specific quality management systems.
Tunnel (TU) Metal Detector Product Details
How It Works

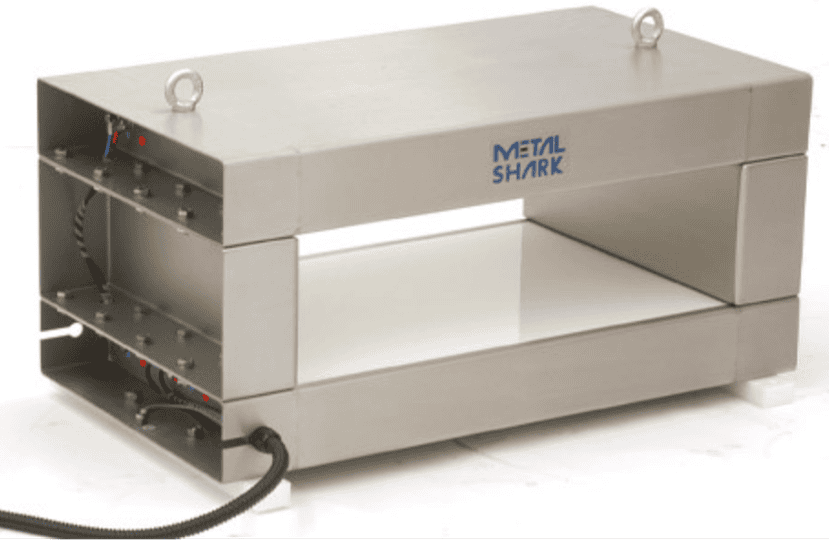

MPI’s Tunnel (TU) Metal Detector is mounted around a conveyor belt carrying bulk or packaged product. As the product passes through the rectangular tunnel-shaped aperture, it is exposed to a precisely balanced electromagnetic field generated by the transmitter and receiver coils.
When a piece of metal contaminant—ferrous, non-ferrous, or stainless steel—passes through this field, it causes a disturbance detected by the system’s sensitive electronics. This triggers a signal that activates an alert or initiates a reject sequence downstream (e.g., stopping the conveyor, activating a diverter, or tagging the contaminated batch for manual inspection).
The system can be installed above the belt (over-belt detection), below it (under-belt), or fully encased around the conveyor. In some setups, dual coil systems are used to ensure coverage of both the top and bottom of large, uneven loads. Detection parameters are programmable and adaptive to different product types, densities, and line speeds, ensuring reliable operation and minimal false rejects.
Tunnel (TU) Metal Detector Specification Table
US Customary Units

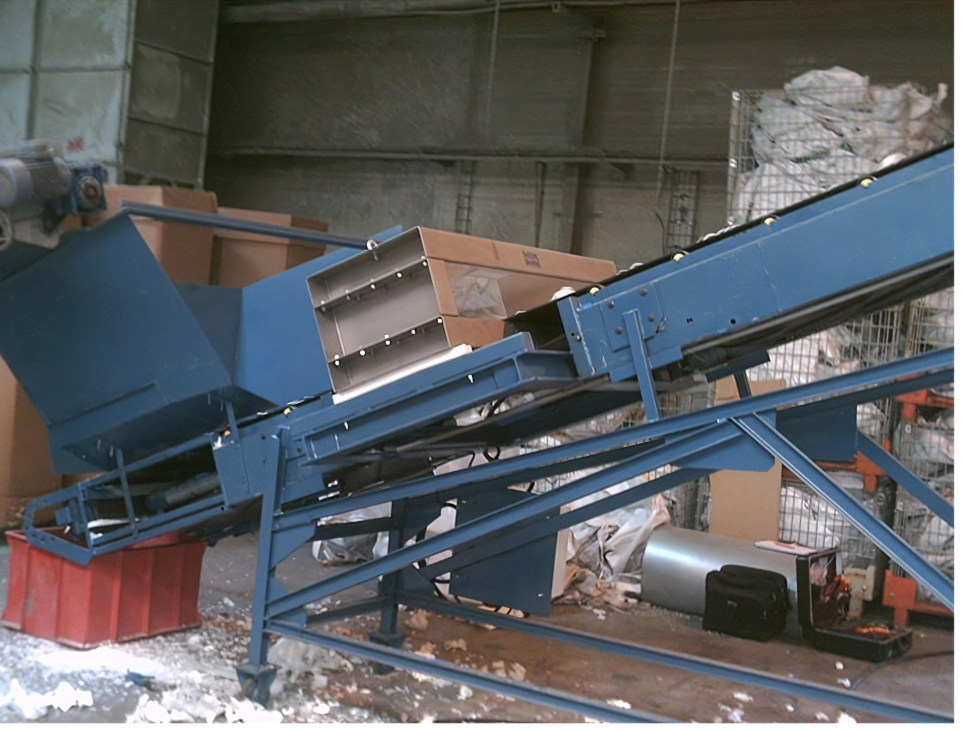

Tunnel (TU) Metal Detector Installations & Variations
We operate under the philosophy of The Game of Work.

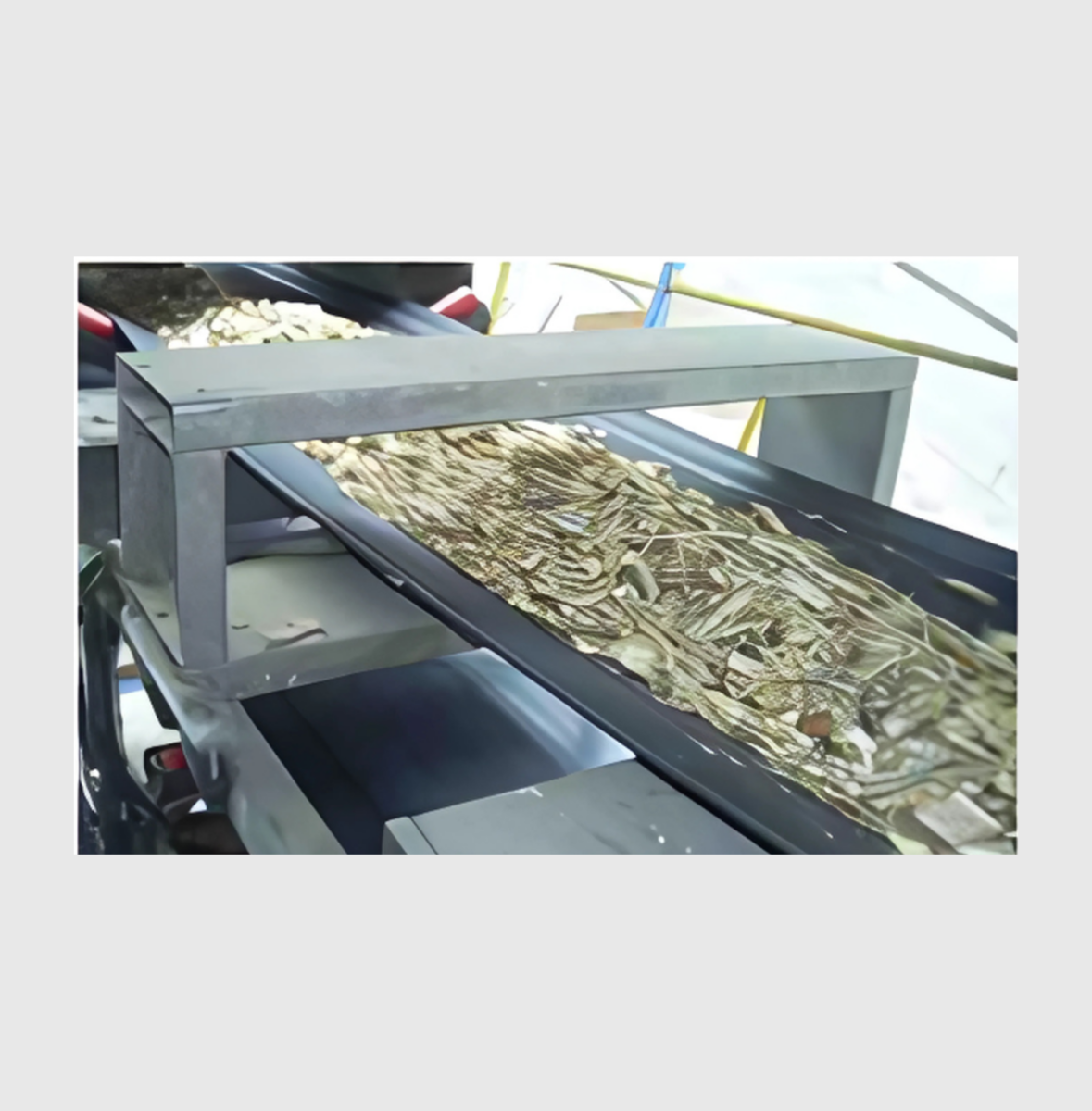

Tunnel (TU) Detector for Wood Processing in Landscaping Application
Tunnel (TU) Detector for Pulp Processing in Paper Production

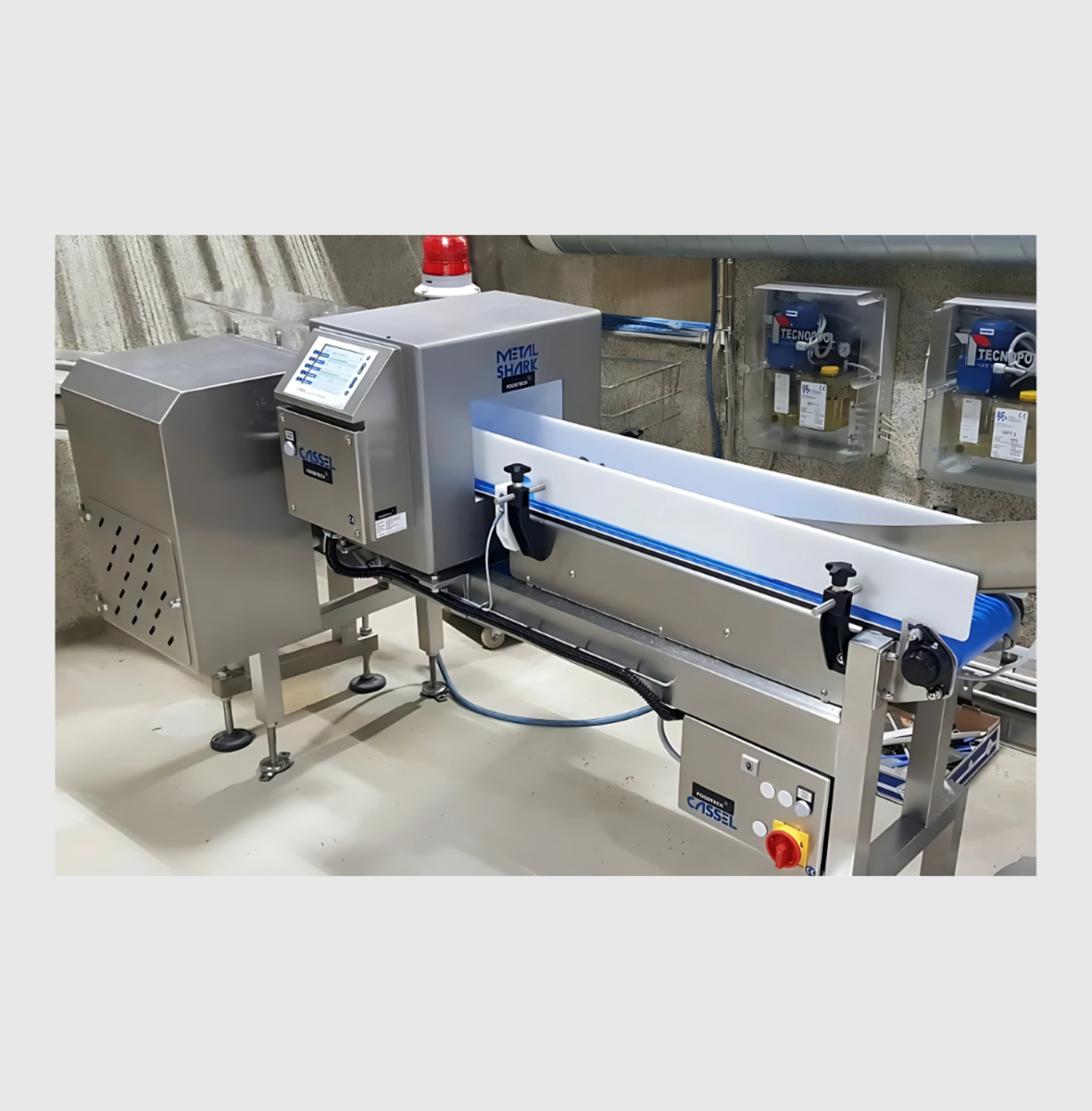

Tunnel (TU) Detector for Plant Particulate Processing for Herbal Supplements
