Continuous Inline Contaminant Detection for Pumped Liquids and Slurries

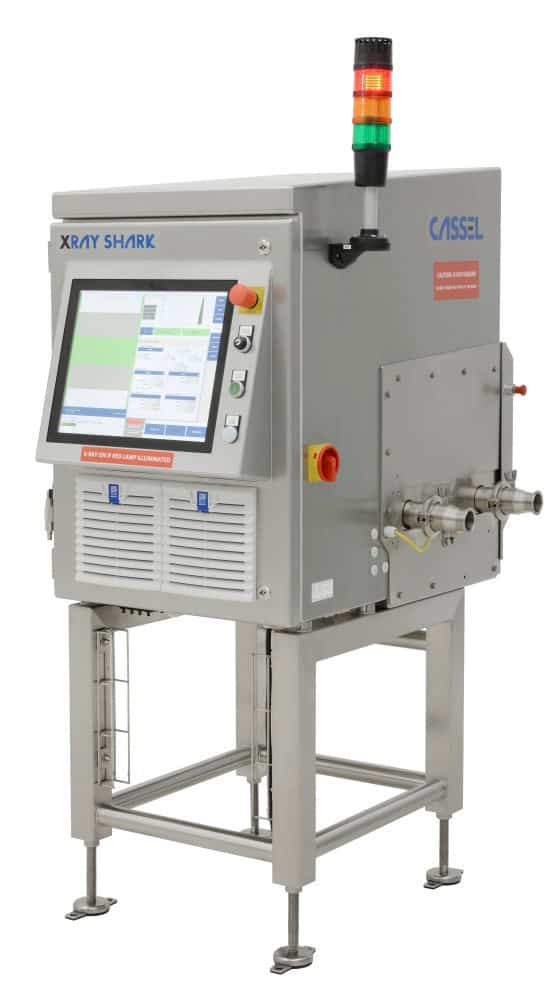

The MPI Liquid Product X-Ray Inspector is a specialized inline detection system engineered to identify foreign objects in liquid, slurry, and paste-like products as they move through a pressurized pipeline. Designed for high-throughput liquid handling environments in food, dairy, pet food, nutraceutical, and pharmaceutical processing, this system ensures product safety at the earliest possible stage—before filling or packaging.
Using advanced single-beam or dual-energy X-ray detection and a hygienic, CIP-compatible design, MPI’s Liquid X-ray system delivers reliable, noninvasive inspection of viscous and opaque products. It identifies a wide range of contaminants—including glass, metal, bone, stone, dense plastic, and rubber—regardless of product density, turbidity, or flow rate.
Fully integrated with automatic reject valves, this system enables real-time contaminant removal, protects downstream equipment, and reduces waste while supporting the highest food safety and regulatory standards.
Benefits of the Liquid Product X-Ray Inspector From Magnetic Products, Inc
Inline Contaminant Detection in Liquid Pipelines
Designed for pumped or flowing liquids, pastes, sauces, slurries, and emulsions, it inspects products inside closed piping systems, eliminating contamination before the packaging phase.
Broad-Spectrum Contaminant Identification
Advanced X-ray image analysis, even in opaque or high-fat liquids, detects a wide range of foreign objects—including glass shards, metal fragments, dense plastics, bones, stones, and rubber.
Real-Time, Non-Disruptive Inspection
It inspects products in motion without interrupting the flow. High-speed analysis enables continuous production with no bottleneck, supporting high-throughput operations.
Sanitary, CIP-Compatible Design
Hygienic 304/316 stainless steel construction with clean-in-place (CIP) compatibility and crevice-free pipe connections. Ideal for use in dairy, beverage, baby food, and other hygiene-sensitive environments.

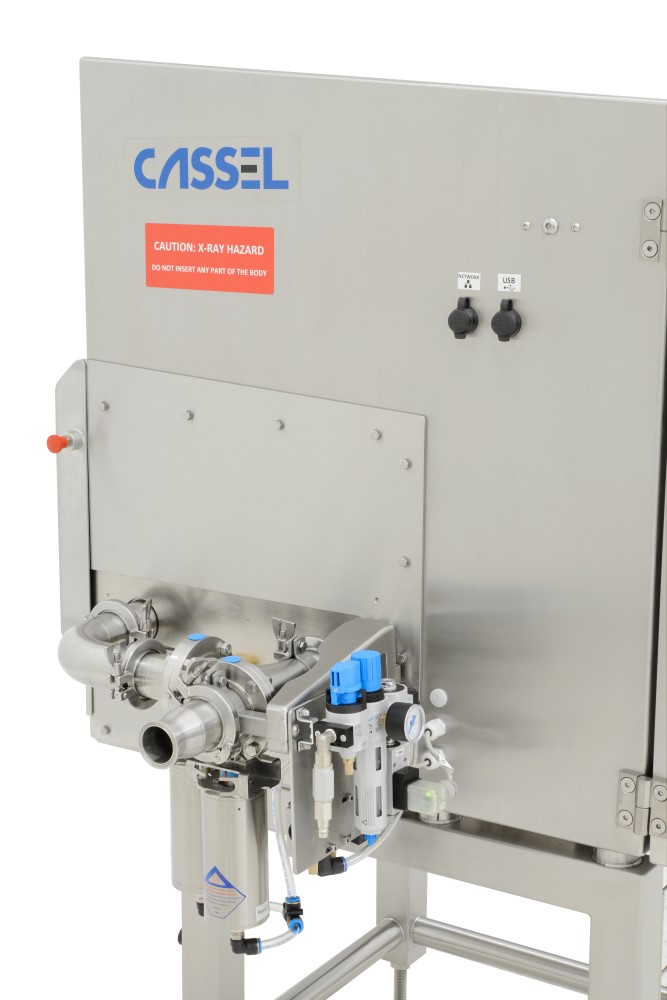

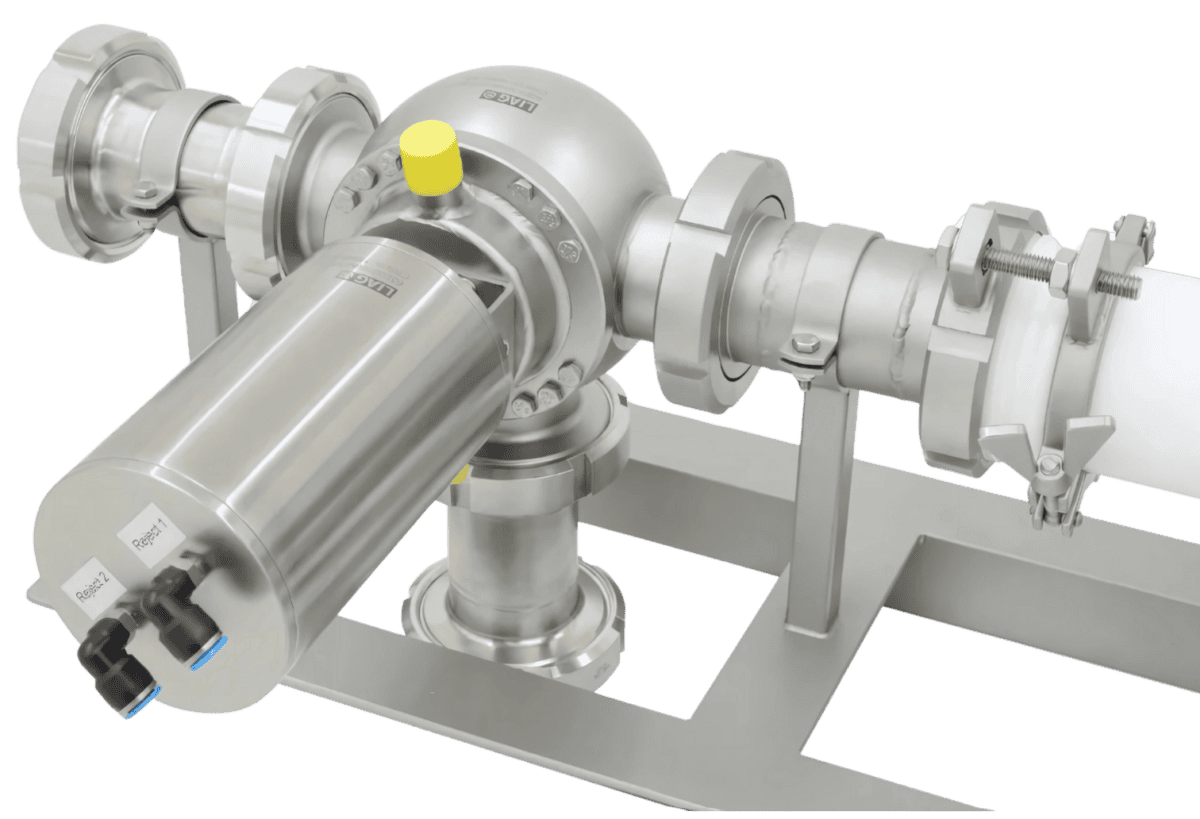

High-Precision Reject Valve Integration
It connects with pneumatic diverter valves to instantly remove contaminated product into a waste tank or return line. This ensures that only clean product continues downstream to fillers or packaging.
Adaptive X-Ray Imaging for Variable Densities
Uses dual-energy or tuned-frequency technology to optimize detection based on product consistency (from water-like to viscous) and ingredient density, reducing false rejects.
Compact Footprint for Easy Integration

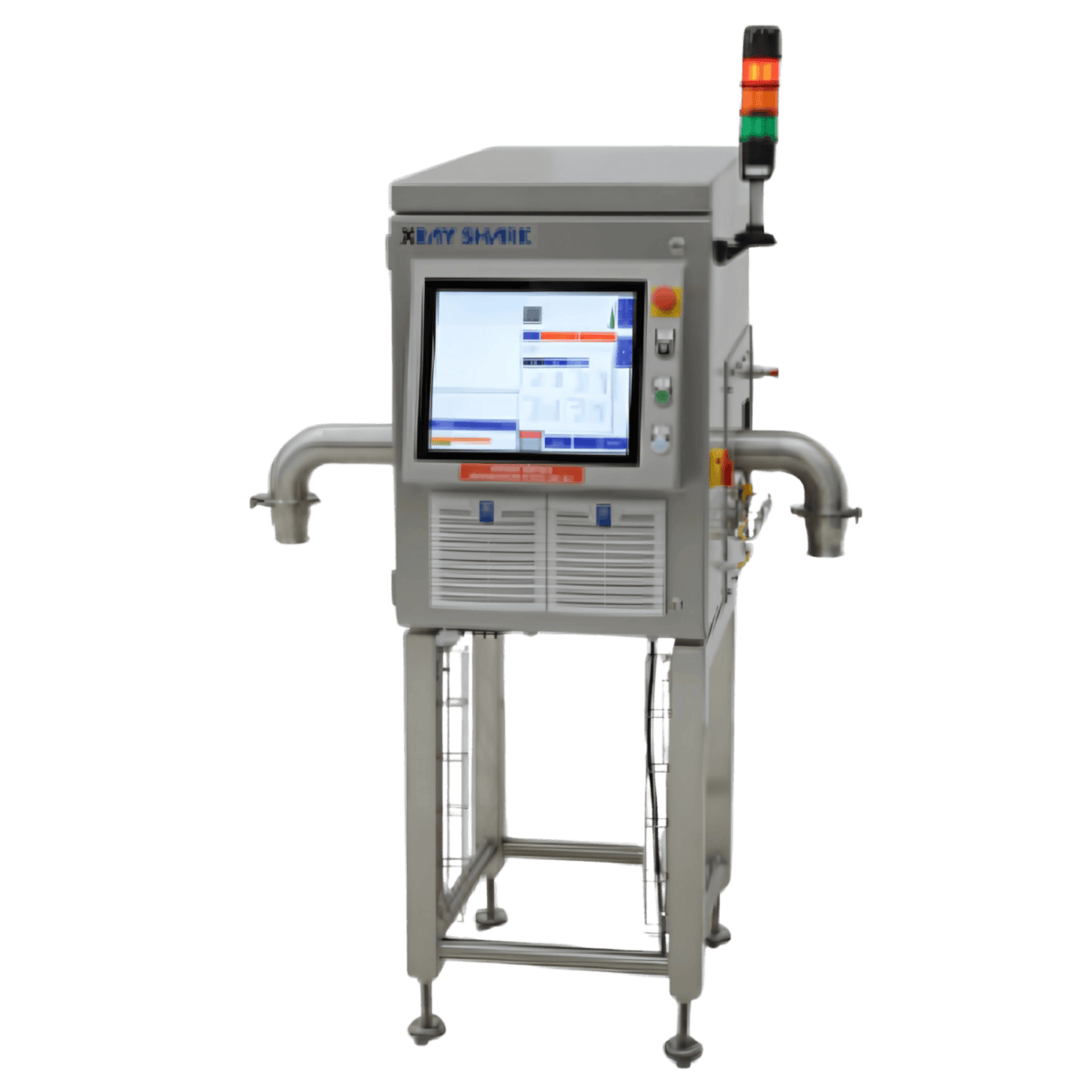

The system is installed directly into the existing pipeline infrastructure with minimal space requirements. It is available in vertical or horizontal layouts to fit the processing line design.
Audit-Ready Controls and Data Logging
Automatically records inspection data, rejection events, operator logins, and image captures. Fully supports HACCP, FSMA, GFSI, and 21 CFR Part 11 requirements for regulated industries.
Liquid Product X-Ray Inspector Product Details
How It Works
MPI’s Liquid Product X-Ray Inspector operates within a closed, pressurized pipeline, where liquid or semi-liquid products are transported via pumps between production stages. It uses focused X-ray technology and real-time image processing to identify contaminants without halting product flow.
Installation in Product Line
The system is installed into a stainless-steel pipeline, typically 2"–4" diameter, at a point before filling or downstream from mixing. It includes an X-ray inspection chamber, a control panel, and a reject valve interface.
X-Ray Beam and Image Capture
As liquid flows through the inspection chamber:
A narrow, collimated X-ray beam passes through the product.
A high-speed detector array captures data about product density in real time.
Image Processing and Analysis
Intelligent software analyzes variations in density, contrast, and shape to detect contaminants. It differentiates between normal product variations and foreign objects using:
Dual-energy filtering for improved discrimination
Self-learning algorithms for optimized detection by product type
Contaminant Identification and Rejection
If a contaminant is detected:
The system immediately sends a signal to a high-speed diverter valve
A small quantity of contaminated product is diverted into a waste tank or reject line
Clean product continues downstream without delay
Data Logging and Quality Assurance
Every detection event is recorded, including:
X-ray image of the contaminant
Timestamp
Product ID or batch code
Operator interactions and alarm states
This data supports audits, traceability, and compliance with food safety plans.
Liquid Product X-Ray Inspector Specification Table
US Customary Units
Liquid Product X-Ray Inspector Installations & Variations
We operate under the philosophy of The Game of Work.

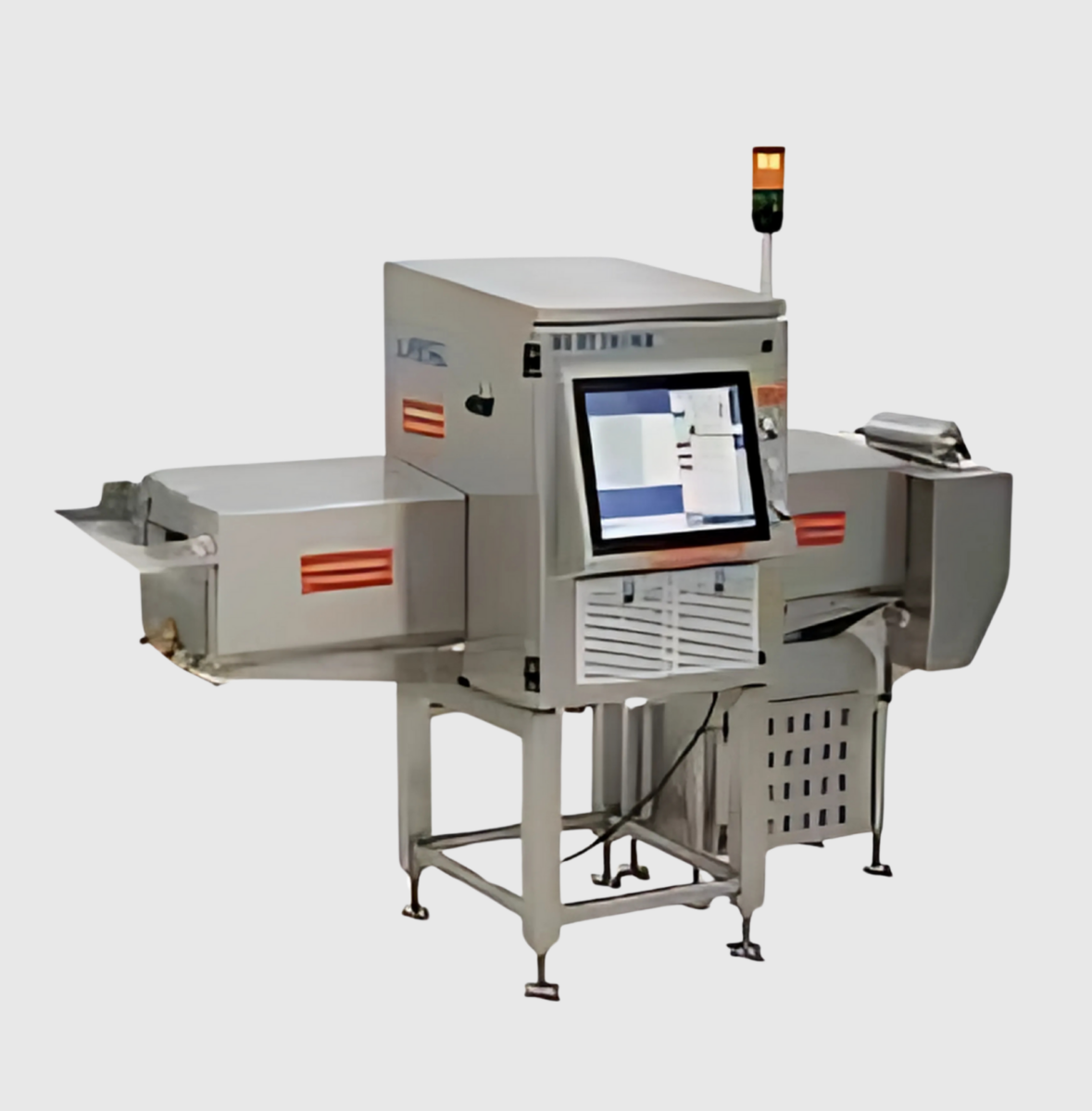

Liquid Product X-Ray Inspector Used to Process Slurry in Pet Food Application

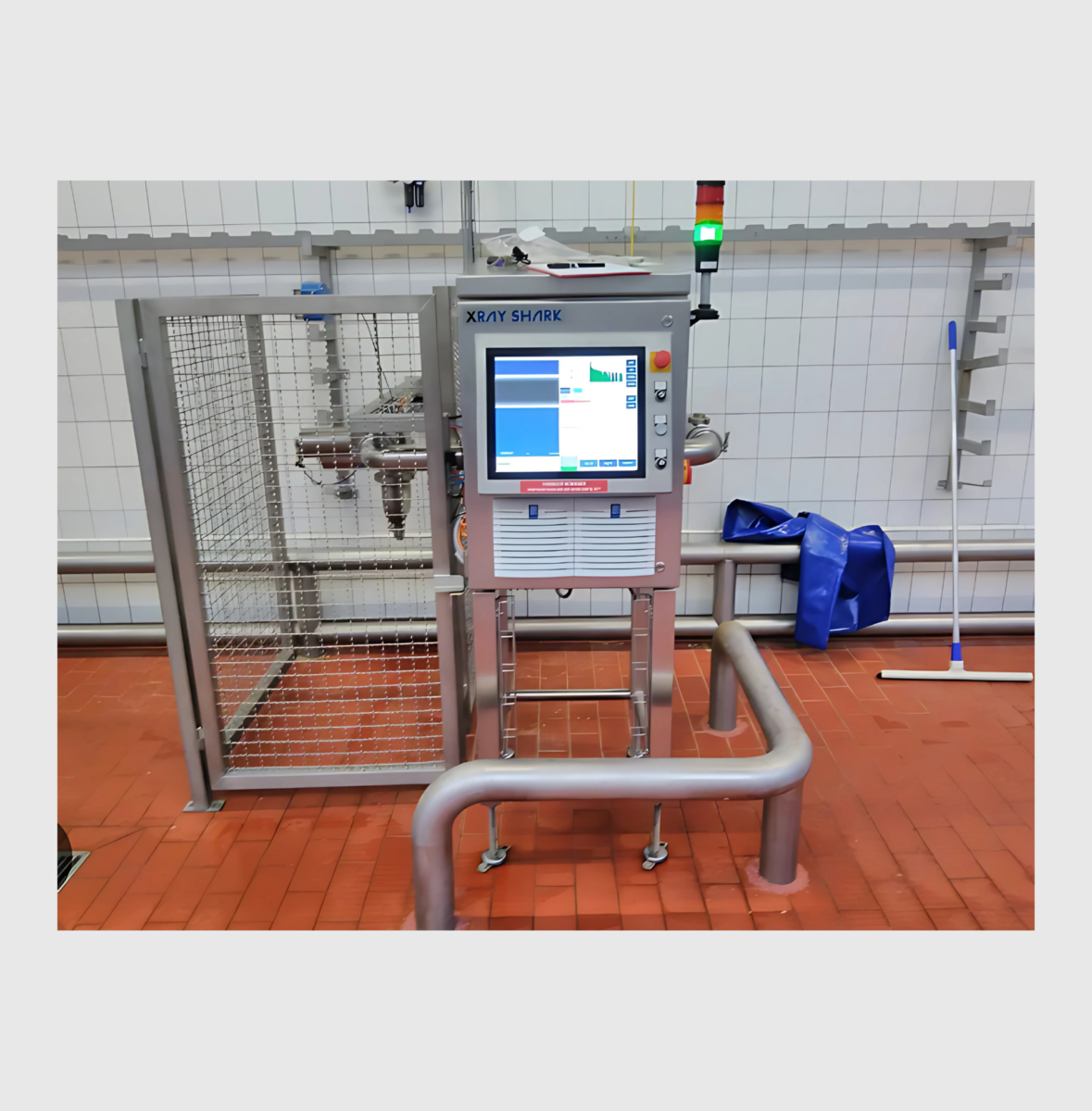

Liquid Product X-Ray Inspector Installed in Dairy Processing for Pumped and Flowing Milk

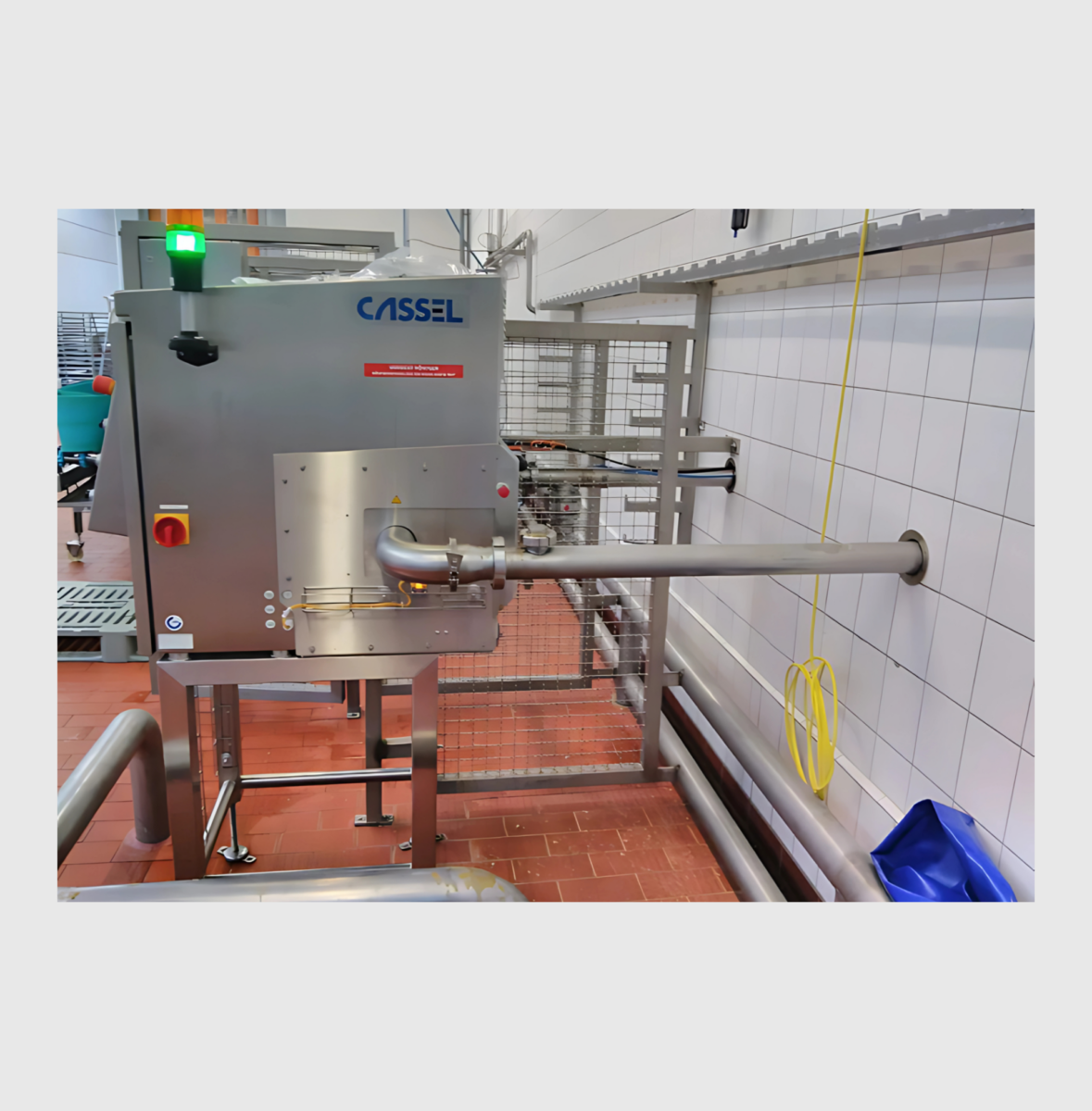

Adaptive Liquid X-Ray Imaging Installed for Variable Liquid Food Densities
