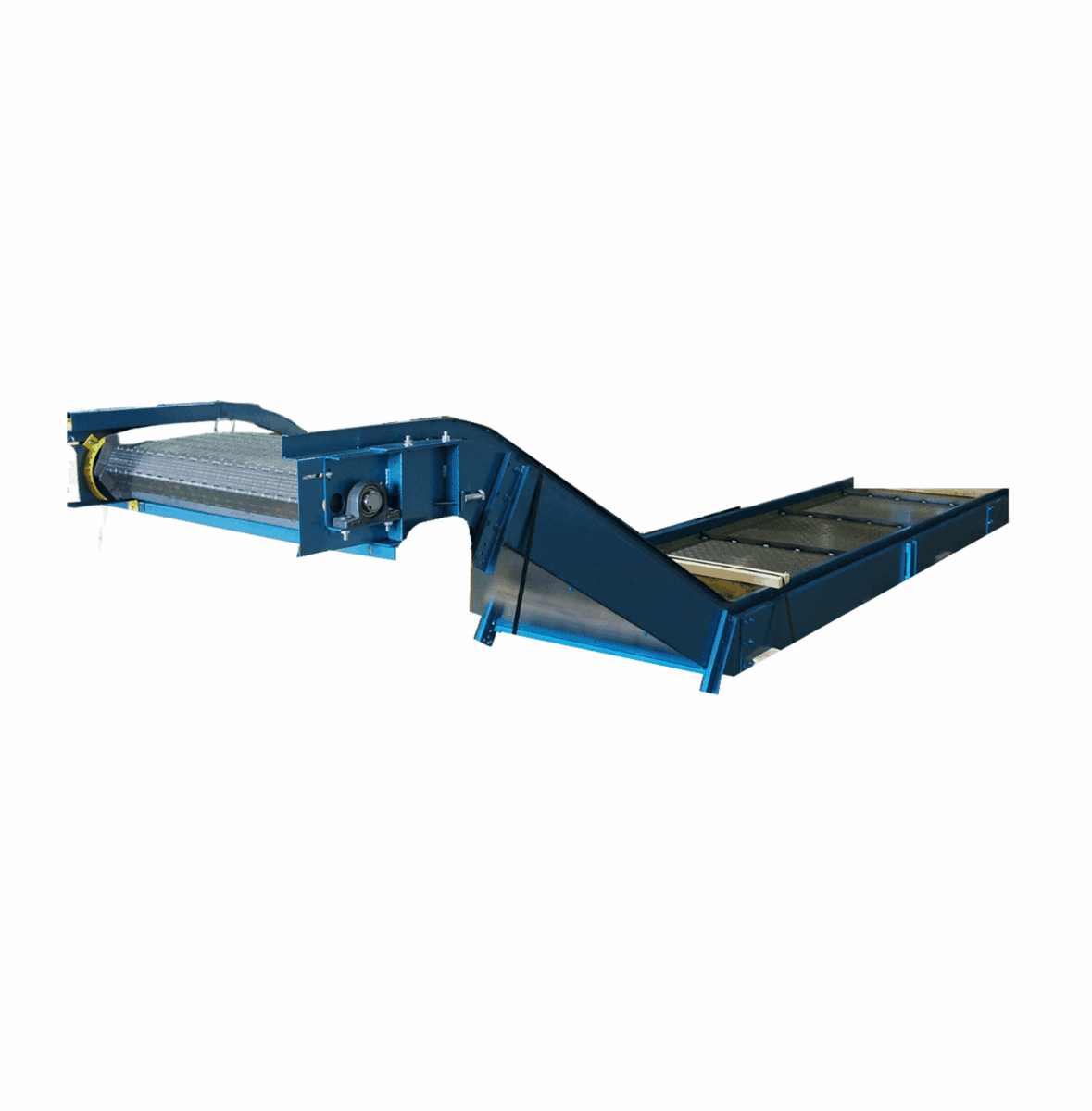

Automated Parts Removal from Stamping Presses
The MPI Parts-Out Conveyor is a rugged, low-profile conveyor system engineered to quickly and cleanly evacuate finished parts or scrap from the die area of stamping presses, forming machines, and other industrial fabrication equipment. Built for durability and precision, this belt-driven solution is ideal for light to moderate material handling, including finished parts and metal scrap. With its compact footprint and modular design, the Parts-Out Conveyor integrates seamlessly into existing press lines, robotic systems, or automated cells, boosting productivity, minimizing downtime, and enhancing operator safety. The Parts-Out Conveyor delivers repeatable, reliable performance in demanding industrial settings, whether used to remove delicately formed parts or heavy-duty scrap.
Benefits of the Part-Out Conveyors From Magnetic Products, Inc
Low-Profile Construction
Enables installation under low clearance presses or compact work cells without modification.
Adjustable Discharge Height and Angle
Offers flexible placement into totes, bins, or downstream automation equipment.
Heavy-Duty Frame and Belt Design
Built to withstand harsh environments and continuous-duty cycles in metal stamping operations.
Integrated Part/Scrap Separation
Optional chutes or diverters allow easy sorting of parts from runners, slugs, or scrap.
Quiet, Smooth Operation
Precision belt tracking and high-efficiency motor reduce noise and vibration.

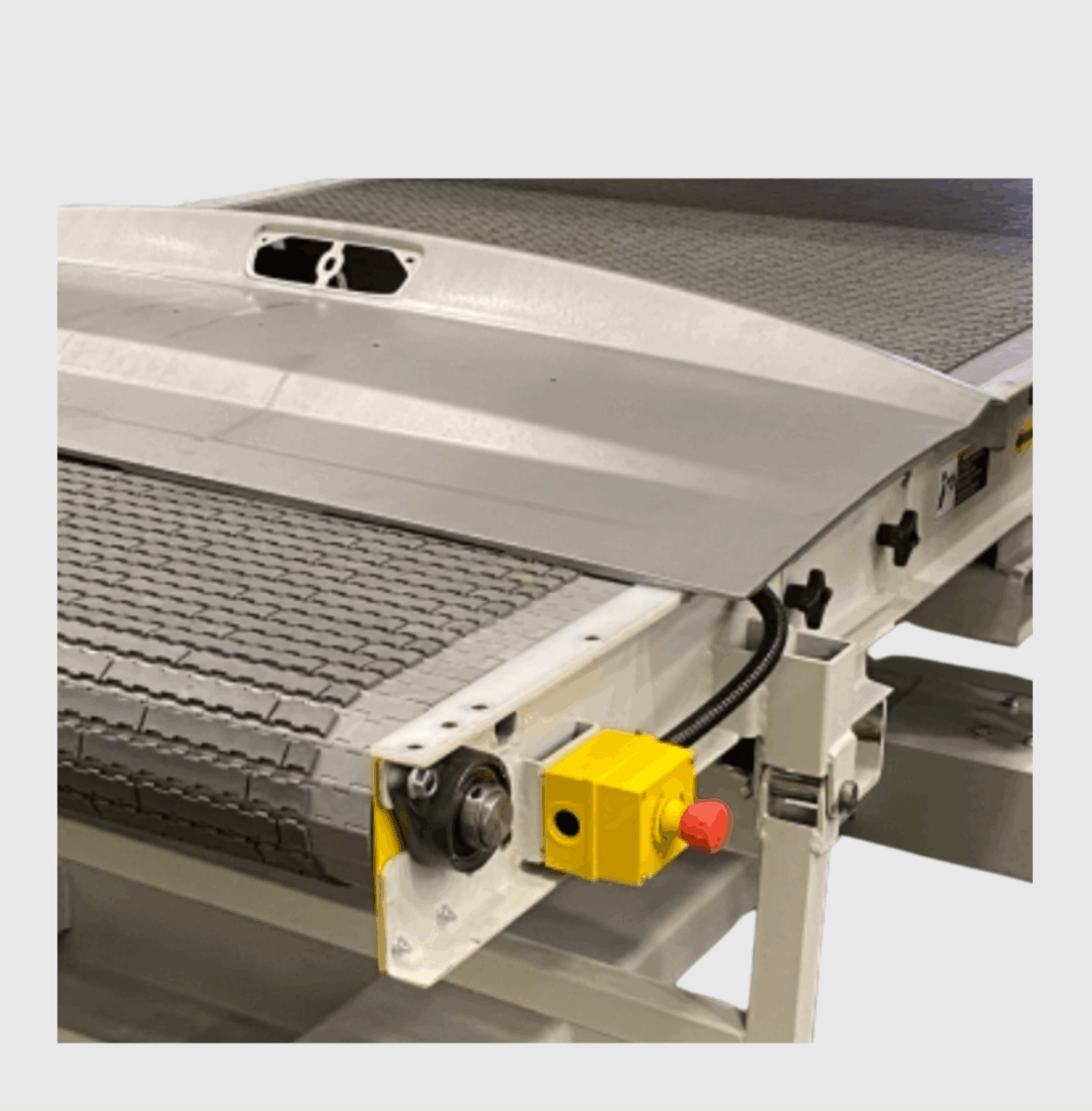

Tool-Free Belt Removal or Tensioning
Simplifies maintenance and cleaning, minimizing line downtime.
Integrated Controls or Standalone Operation
Easily ties into existing press or automation control systems.

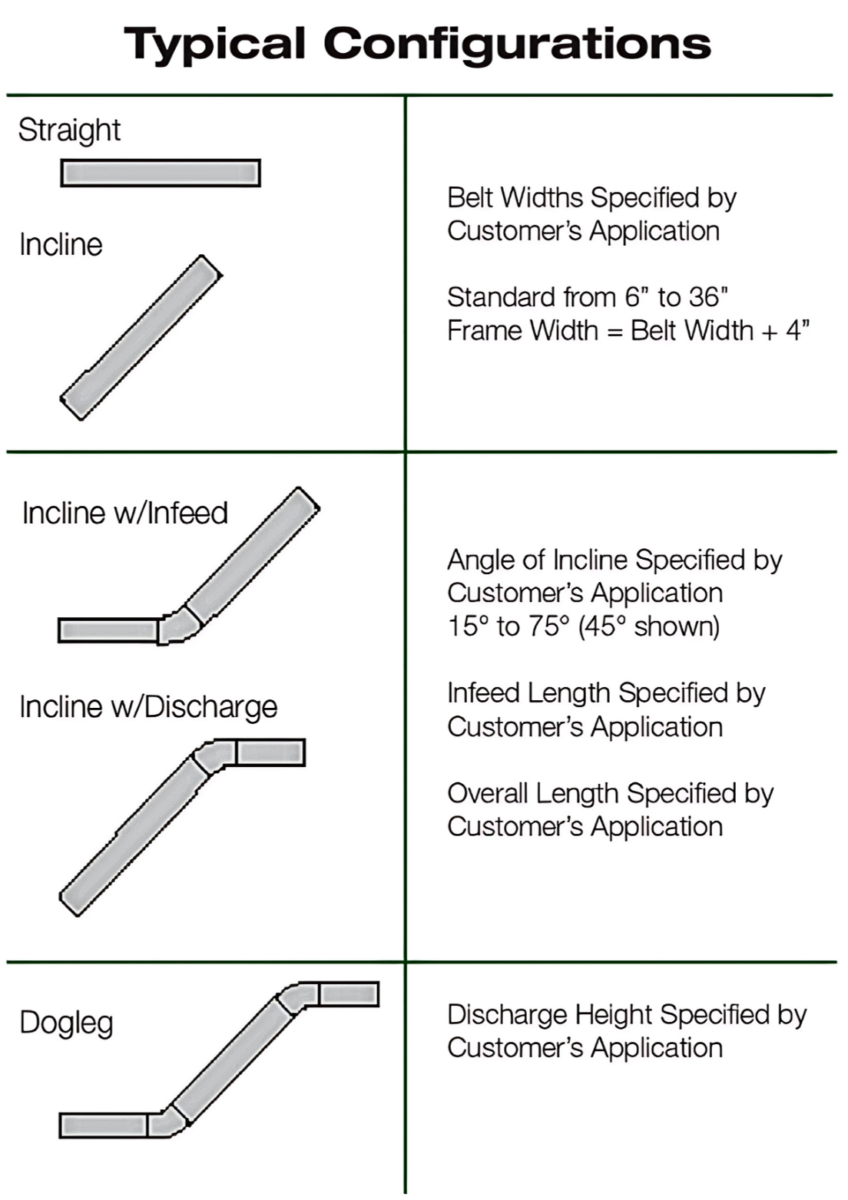

Modular Design
Available in custom lengths, widths, and configurations to match application-specific needs.
Part-Out Conveyors Product Details
How It Works

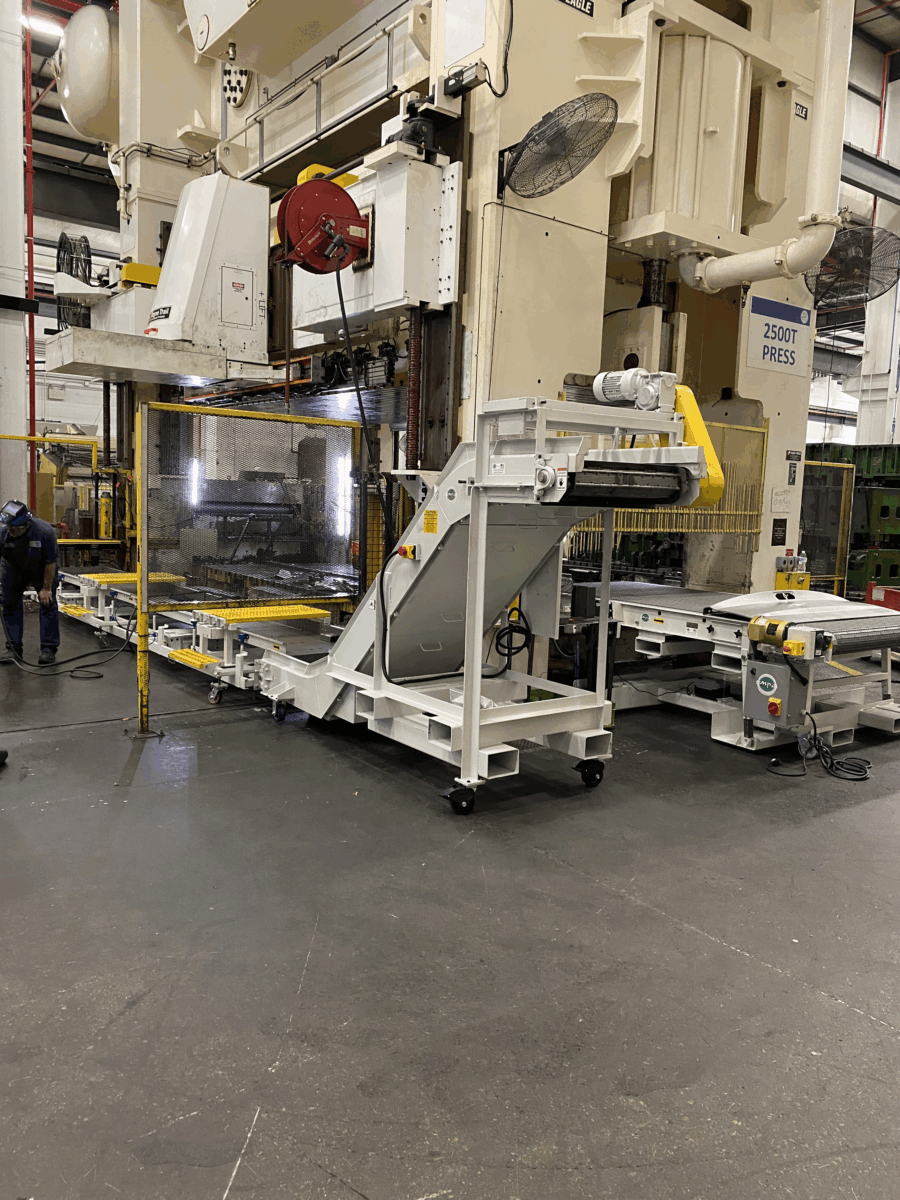

Positioned Near the Die or Part Drop Area
The conveyor is installed directly beneath the press or die to capture parts or scrap as they fall.
Material Falls onto the Conveyor Belt
As the stamping or forming process ejects finished components or scrap, they land safely on the belt.
Belt Moves Items Away from the Press
The motorized belt carries the material laterally or upward to a designated discharge point.
Optional Part/Scrap Diverters
Configurations may include diverters or sorters to separate usable parts from waste.
Discharge to Bin, Tote, or Secondary Process
Finished parts or scrap exit the conveyor into containers or are transferred to the next process step.
Continuous or Intermittent Operation
Based on control integration, the conveyor can be synced with press cycles or run continuously.

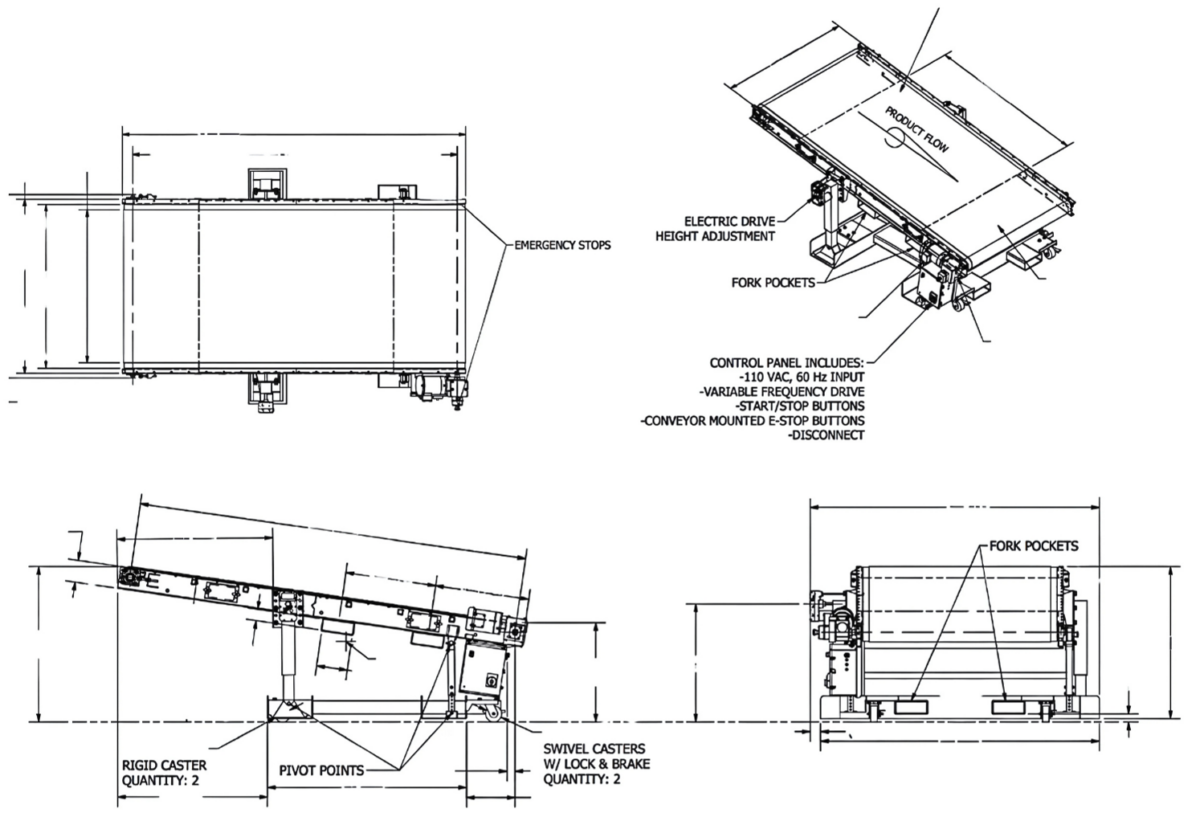

Part-Out Conveyors Specification Table
US Customary Units
Compatibility Check - Part-Out Conveyors Installations
We operate under the philosophy of The Game of Work.

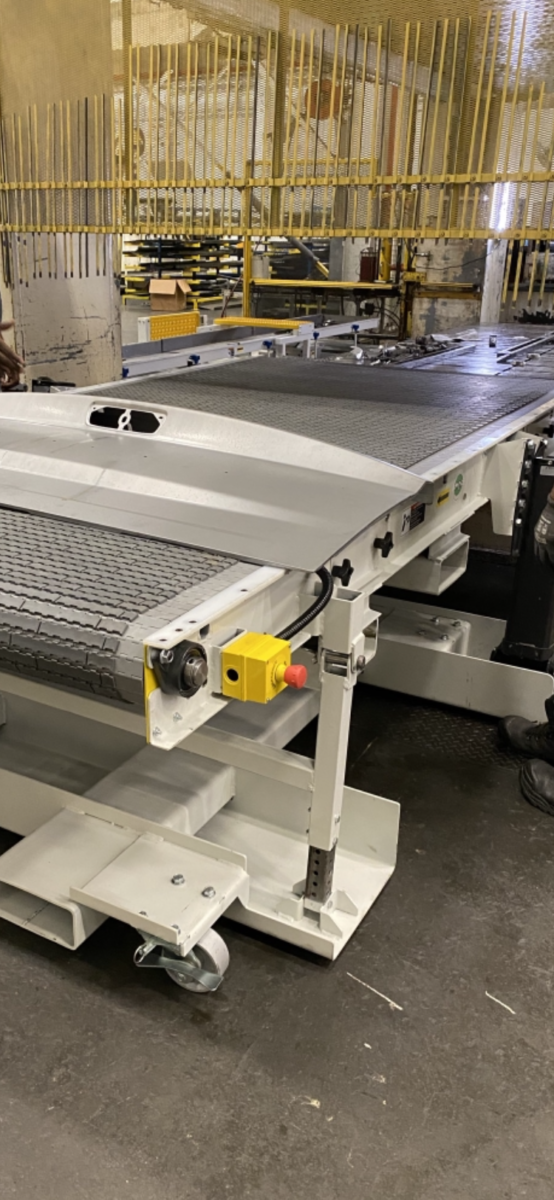

Part Out Conveyor Used for Workstation Delivery

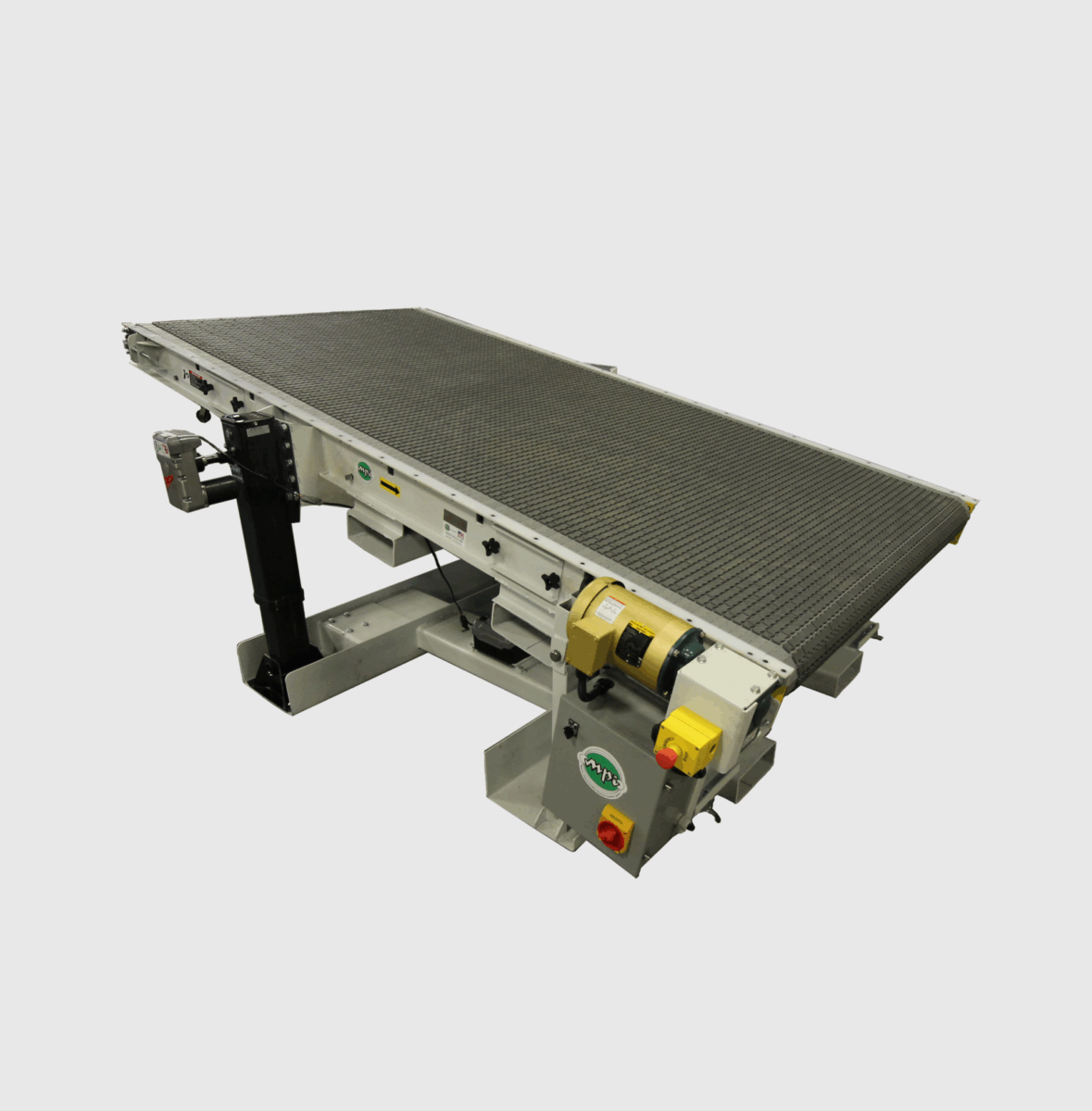

Part Out Conveyor Used in Aerospace Parts Manufacturing Application

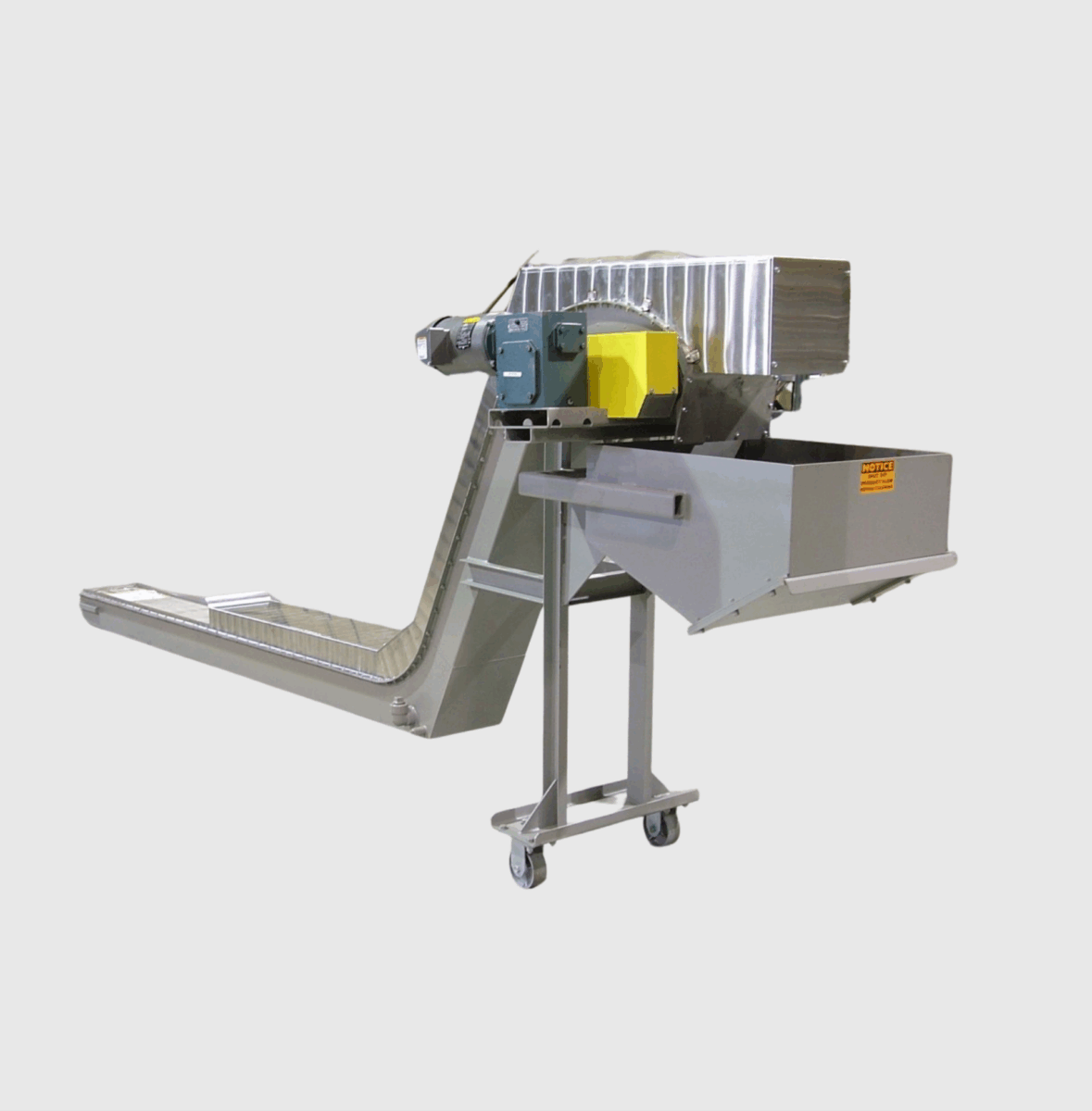

Cold Heading Part Conveyor with Hopper
